Sniffer4D™ Components & Specifications

Users can choose up to 9 sensing modules from below

tabela_dlugi_inhalable
tabela_wilderangeso2
tabela_wilderangeh2s
tabela_Total
tabela_resolutiono3
tabela_resolutiono2
tabela_wilderangevocs
tabela_wilderangenh3
tabela_wilderangeh2
tabela_resolutionso2
tabela_resolutionco
tabela_wilderangecxhy
tabela_wilderangehci
tabela_modules
DESIGNED TO BE MOUNTED ON MOVING PLATFORMS
null

Size

150 x 148 x 50 mm
null

Weight

450g – 600g
null

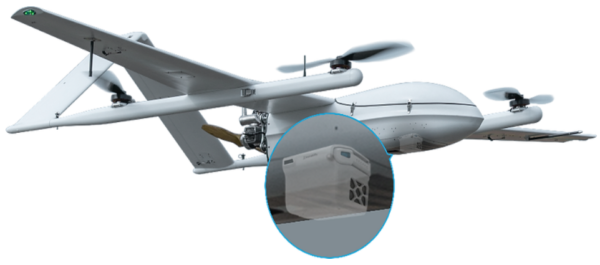

Compatible with:

Drones, Helicopters, Ground Vehicles
sniffer4d_drone
sniffer4d_plane
sniffer4d_Ground_Vehicles
sniffer4d_intake_system

Active Air Intake System Stabilizes the Airflow Inside Sniffer4D Under Different Speeds



Reduce the influence of airflow outside Sniffer4D. Allow internally mounted sensors to quickly and effectively contact the outside air to shorten the response time.

sniffer4d_mount_320px

Mounted on the Top of the Drones to Reduce Turbulence from Drone Propellers



Taking flow field characteristics around drones into account, gas detectors’ intake should be installed on the top of the drones, and equipped with an active air intake system.

Pollutant 1

Pollutant 2

Pollutant 3

Pollutant 4

Pollutant 5

Pollutant 6

Low Concentration

1169441

High Concentration

Mobile Air Quality Mapping System
For drone-based & ground-vehicle-based hyper-local air quality mapping

One Mission, Multiple Types of Pollutant Information
During a mission, Sniffer4D™ is able to sense multiple air pollutants and sends this data back to Sniffer4D Mapper™ analytic software in real-time.

Pioneering Modularized Hardware Design- More Flexibility

The sensing modules inside Sniffer4D use state of the art gas sensors from suppliers such as Alphasense UK. Each sensing module is equipped with an dedicated 16 MHz microcomputer to run our propietary filtering, bias correction, humidity and temperature correction algorithms.

To account for individual difference in sensors, each sensing module is calibrated according to its very own intrinsic properties.You can purchase sensing modulesseparatley from us or our resellers to alter your current setup.

Performance Verified by Metrology & Research Institutes
The performance of Sniffer4D™ was evaluated by a national level metrology institute in China, demonstrating excellent accuracy, repeatability and response time after the calibration.

Extremely Adaptive, Unlimited Applications
With a dimension and weight of 150x134x42mm and 450~600g, Sniffer4D™ can be easily integrated with various ground & aerial vehicles.
For some popular UAV platforms, Soarability has designed mounting kits for them to allow even easier integrations.

Fully support DJI Payload SDK, data displayed in DJI Pilot in real time (for DJI M210 only).

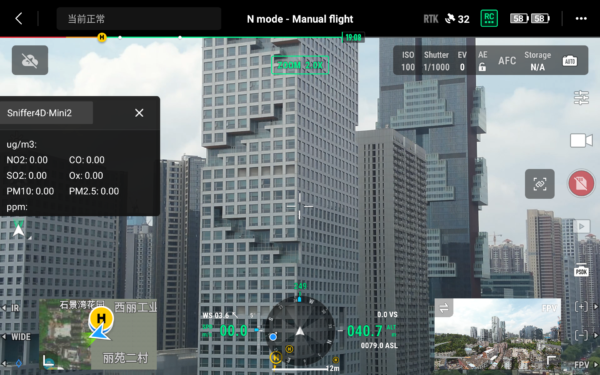

During the flight, readings from Sniffer4D can be viewed in real time in DJI PILOT app

Sniffer4D Mapper™ Analytic Software

Where data from Sniffer4D™ becomes intuitive & actionable information for decision making
A turnkey solution for data collection, visualization, analysis, reporting and cloud data storage
Seamless data synchronization from the field to the command centre, via Sniffer4D Cloud

Flexible Solution Delivery Plans

TPI offers flexible Solutions delivery options to help our clients sucessfully Sniffer 4d into their workflowes ASAP

Sniffer4D Only

TPI offers Sniffer 4D and mouting kits the clients and clients integrate them to their own ground & aerial vehicles.

Sniffer4D & UAV Platform

TPI offers clients fully integrated, ready- to- operate Sniffer4D and UAV platform (DJI M100/210/600)



Sniffer4D & Onboarding

TPI offers clients Sniffer4d, customized integration services for specific vehicles, and on-site training.
